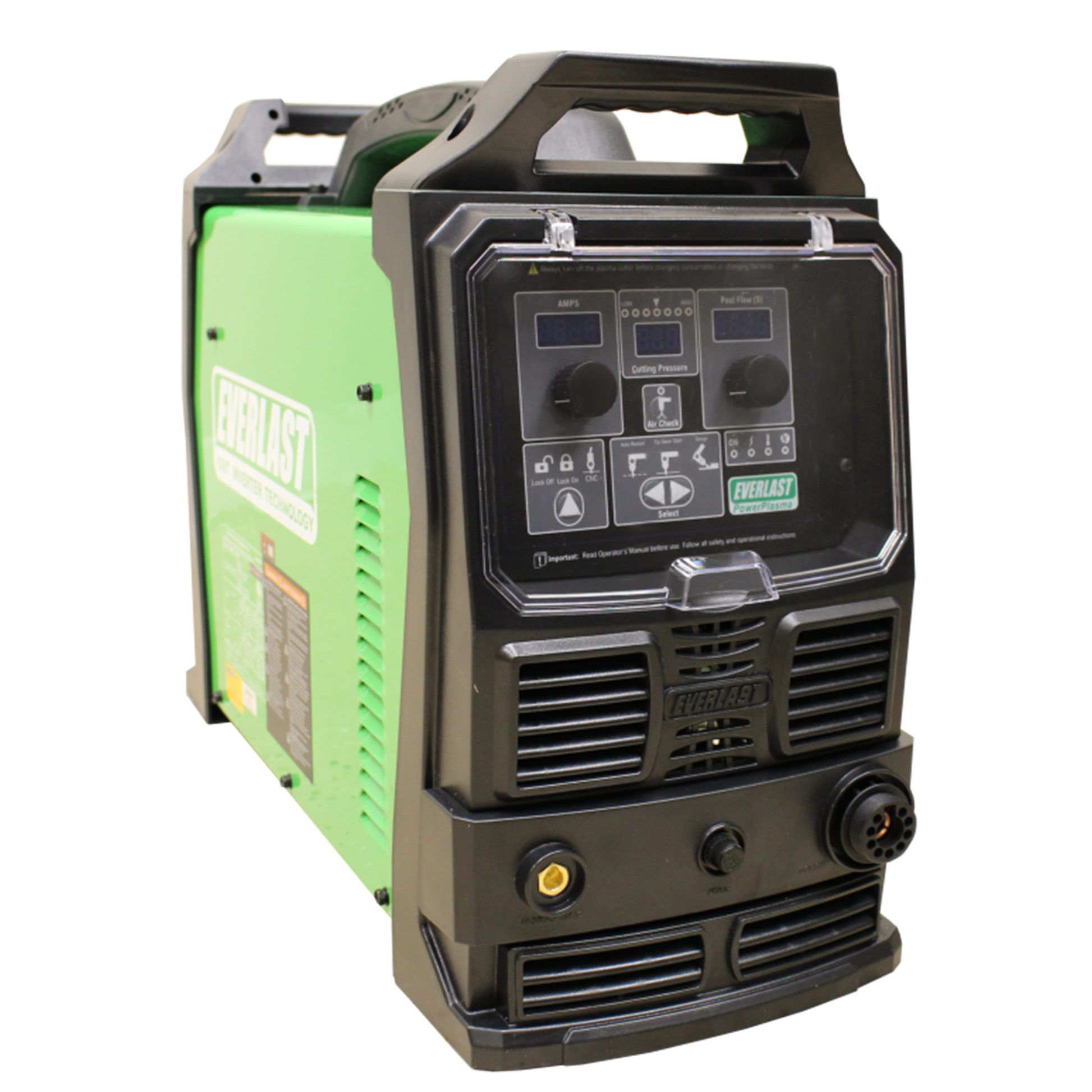

PowerPlasma 102i - 3 PHASE



  • Lightweight
  • digital_display
  • igbt_equipped
  • 415v_3ph

Notify me when this product is available:

The PowerPlasma 102i is designed for heavy duty plasma cutting service.  With up to 100 amps of cutting power, the original unit has proven its performance and reliability in industrial and fabrication settings since 2008.  The newest version has been redesigned for a more compact stature. The IGBT inverter design is reliably engineered to provide heavy duty service with a 60% duty cycle at maximum amps.  This is enough to sever metal up to 1 5/8" thick when needed.  For daily use, it works great for regularly cutting 1 1/4" thick plate metal, and when called upon, makes a clean cut up to 1 1/2".  The heavy duty Innotec iPT100 blow back torch features a Euro, quick connect central adapter for easy connection.  Priced around the price of some 40-50 amp plasma cutters on the market, this Everlast IGBT inverter plasma cutter clearly doesn't go slack on performance.


    Please Note: This model of PowerPlasma 102i  is available and configured to operate on a 400 - 415V ~3 Phase input power. This machine does not have a plug fitted

    To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

    Manufactured and compliant with IEC/AS 60974.10, CE Guaranteeing your electrical safety and performance. INDUSTRIAL USE ONLY


    Download PDF Manual HERE

    Out of stock


    • Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
    • Cuts virtually any type of metal with ease
    • Simple to use torches with inexpensive service parts and consumables
    • Commercial/Industrial class, 60% Duty cycle at 80 amps
    • Clean, smooth cuts and improved consumable life with the new Italian designed iPT 80 torch
    • Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
    • Pilot arc improves performance and cutting on dirty, painted, or rusted metals
    • 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
    • Adjustable post flow control up to 50 seconds to improve consumable and torch life
    • Front air pressure gauge allows quick verification of air pressure
    • Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
    • IGBT modules improve reliability and performance while reducing overall weight
    • CNC socket and CNC torch for plasma table use.


    • Type: IGBT
    • Voltage/phase: 400-415 V 3 Phase
    • Output Amp/Volt Range: 20-100A/88V-120V
    • OCV: 300V
    • Max Inrush ( I1MAX ) Amps: @400-415V: 24A
    • Maximum Rated (I1EFF ) Input Amps: @400-415V: 19A
    • Duty Cycle At Rated Amps/Volts: 60% @ 100A/120V - 100% @ 80A/112V
    • Arc Start Type: Blow Back (Piston type)
    • PilotArc: Yes
    • Torch Type: Italian designed iPT 80 machine torch
    • CNC Interface Port: Yes
    • Adjustable Post Flow Timer: Yes
    • Gouging: Hell yes!
    • Recommended Cutting Air Pressure: 75psi
    • Recommended Compressor Capacity: 7CFM @ 90 psi/60 gallon tank
    • OK-to-Cut Indicator/Low Air pressure safety: Yes


    • Up to 5/8" daily use with CNC (rated for best cut speed and quality)
    • Up to 1" clean cut with CNC (edge start)
    • Up to 1 3/16" severance cut @ 3-5 ipm
    • Pierce up to 1/2-5/8" with auto THC


    Plasma cutting capacity is affected by several factors.  Ideal cutting conditions require dry air, new consumables, proper air pressure etc.   Quality of cut depends upon consumable orifice size, standoff height,  and travel speed.

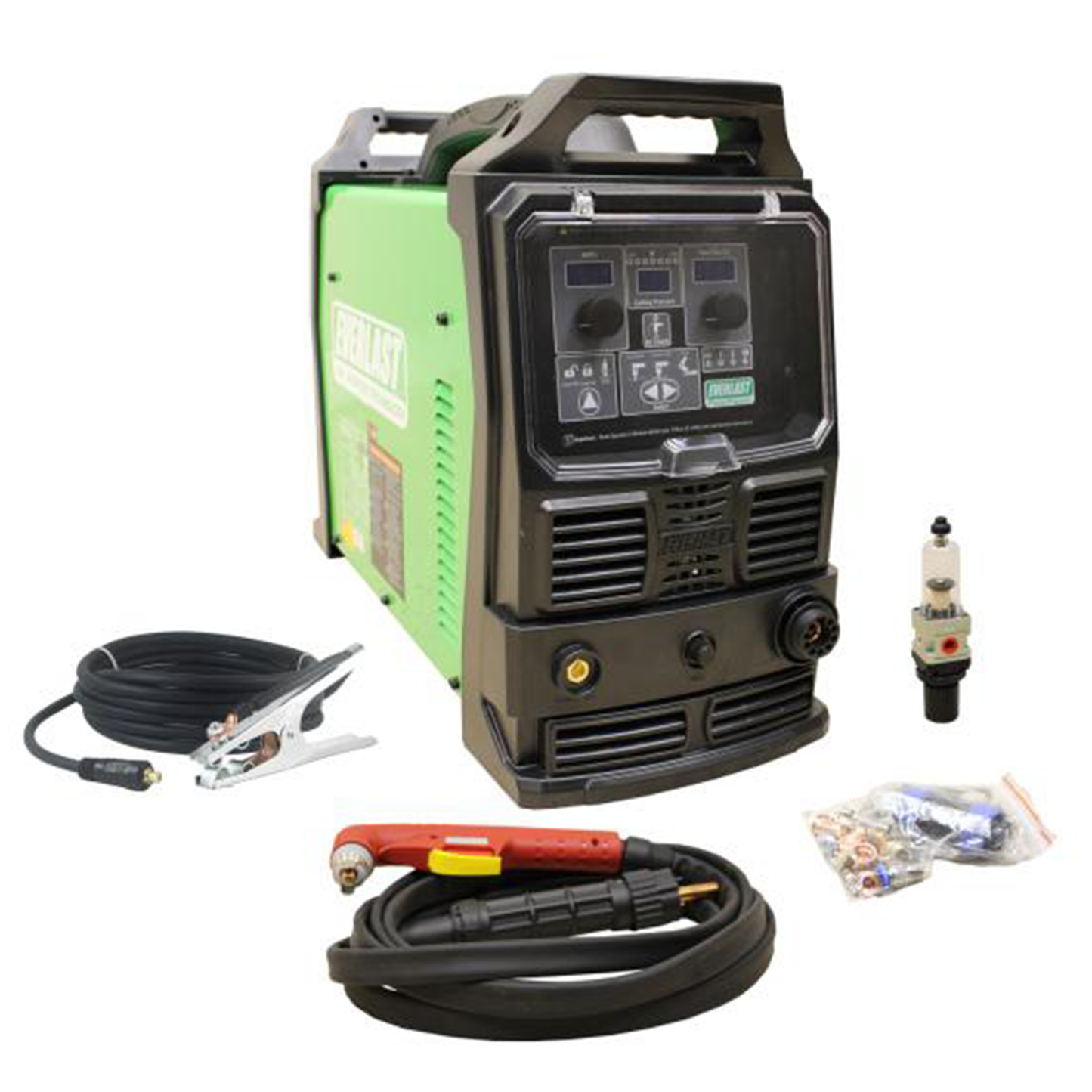

    • IPT-100 hand held torch 6M with Euro quick-connect Central connector
    • Ground Clamp with 25 Dinse connector
    • AW3000-02 Air Filter / Water Trap (gauge is not included)
    • Consumable starter kit
    • CNC plug


    • ProCart 330
    • Welder Cover
    • NOVA Welding and Fabrication Table
    • NOVA Clamp and Tool Kit
    • iPT-100 Hand-held Plasma Torch, 15 ft
    • iPT-100 Hand-held Plasma Torch, 25 ft
    • iPT-100 Plasma Consumables Kits


    A separate inline air dryer must be provided by the customer to prevent torch damage, and excessive consumable wear. The unit includes a regulator/water trap, but is not designed to remove all water or moisture.

    If using with a generator, use a generator rated by its manufacturer as providing "clean power".  This is usually 5% or less THD (total harmonic distortion).

    Use with a generator rated for at least a minimum of 15,000 surge watts.
