PowerTIG 200DV



  • Lightweight
  • digital_display
  • igbt_equipped
  • 1_phase

Notify me when this product is available:

As the latest addition to the analog line of inverter TIG welders from Everlast, the PowerTIG 200DV features all of the same dynamic performance of the PowerTIG 200DX, but expands its versatility by adding dual voltage and a digitally controlled IGBT inverter.  Able to operate on 120V or 240V single phase 50/60Hz, the unit offers maximum go anywhere performance.  The unit is definitely portable, and can be used with any generator that is rated for 9000W (240V) surge watts and is certified by the manufacturer as "clean power".   If you need a  reliable, TIG welder that you can carry with you and make quality welds day-in and day-out, the PowerTIG 200DV is definitely one to consider.


PLEASE NOTE: This machine is fitted with a 15A plug. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

Manufactured and compliant with IEC/AS 60974.10, CE Guaranteeing your electrical safety and performance. INDUSTRIAL USE ONLY

Download PDF Manual HERE

Out of stock


  • Reliable IGBTs for stable inverter performance
  • 120V/240V Dual Voltage input
  • Low as 5 Amp start for TIG in DC/ 20 Amp in AC.
  • Pre flow and Post flow control for maximum shielding gas protection before and after

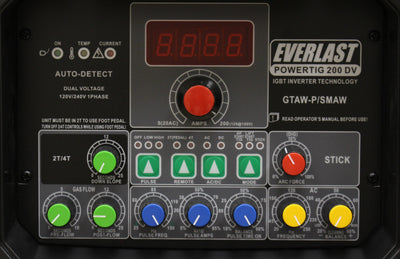

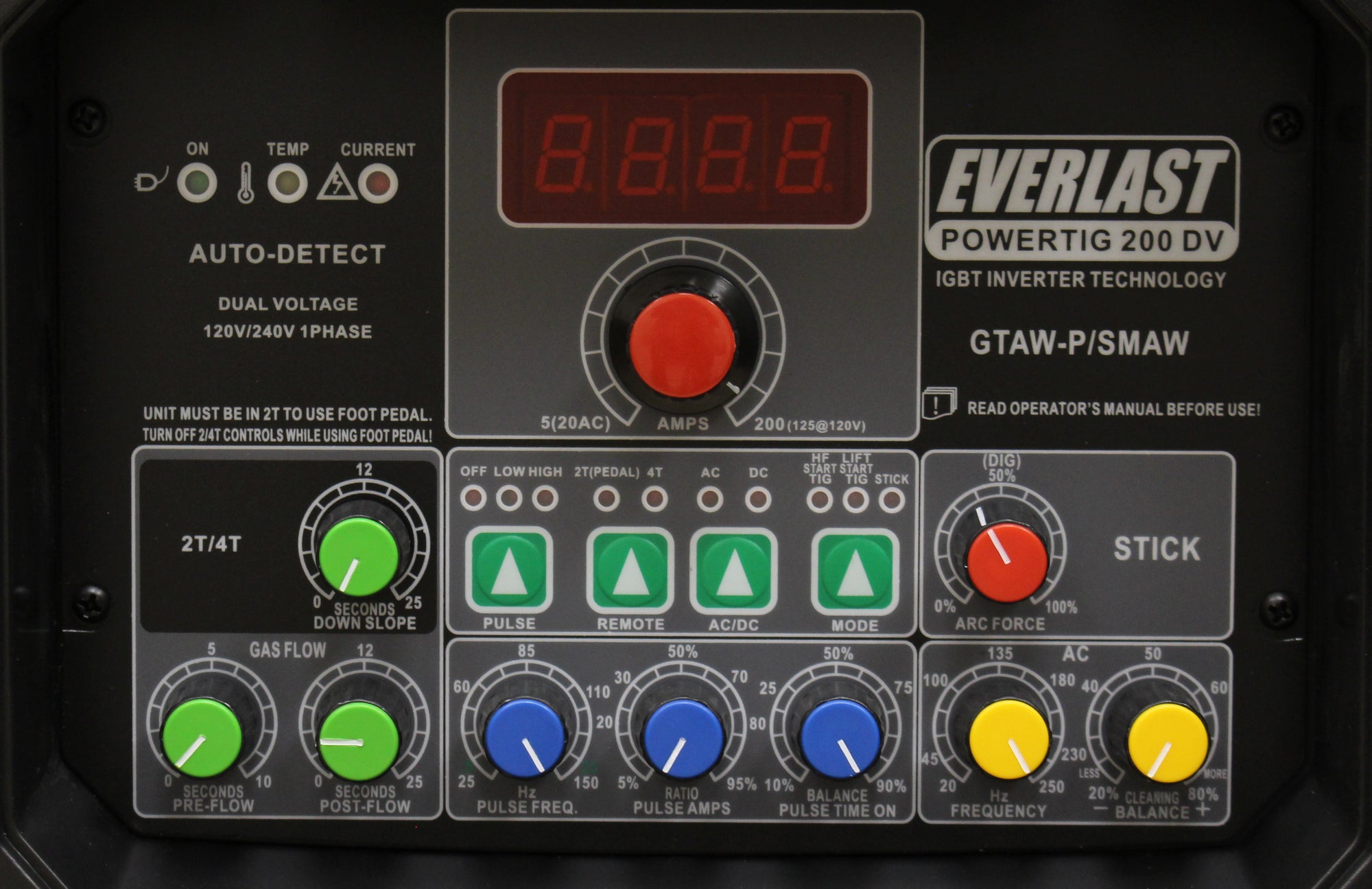

  • Color coded controls are easy to identify and understand
  • Lift start function for use when HF is not desireable
  • AC cleaning range adjustment of 30-70% offers good control over cleaning/penetration ratio

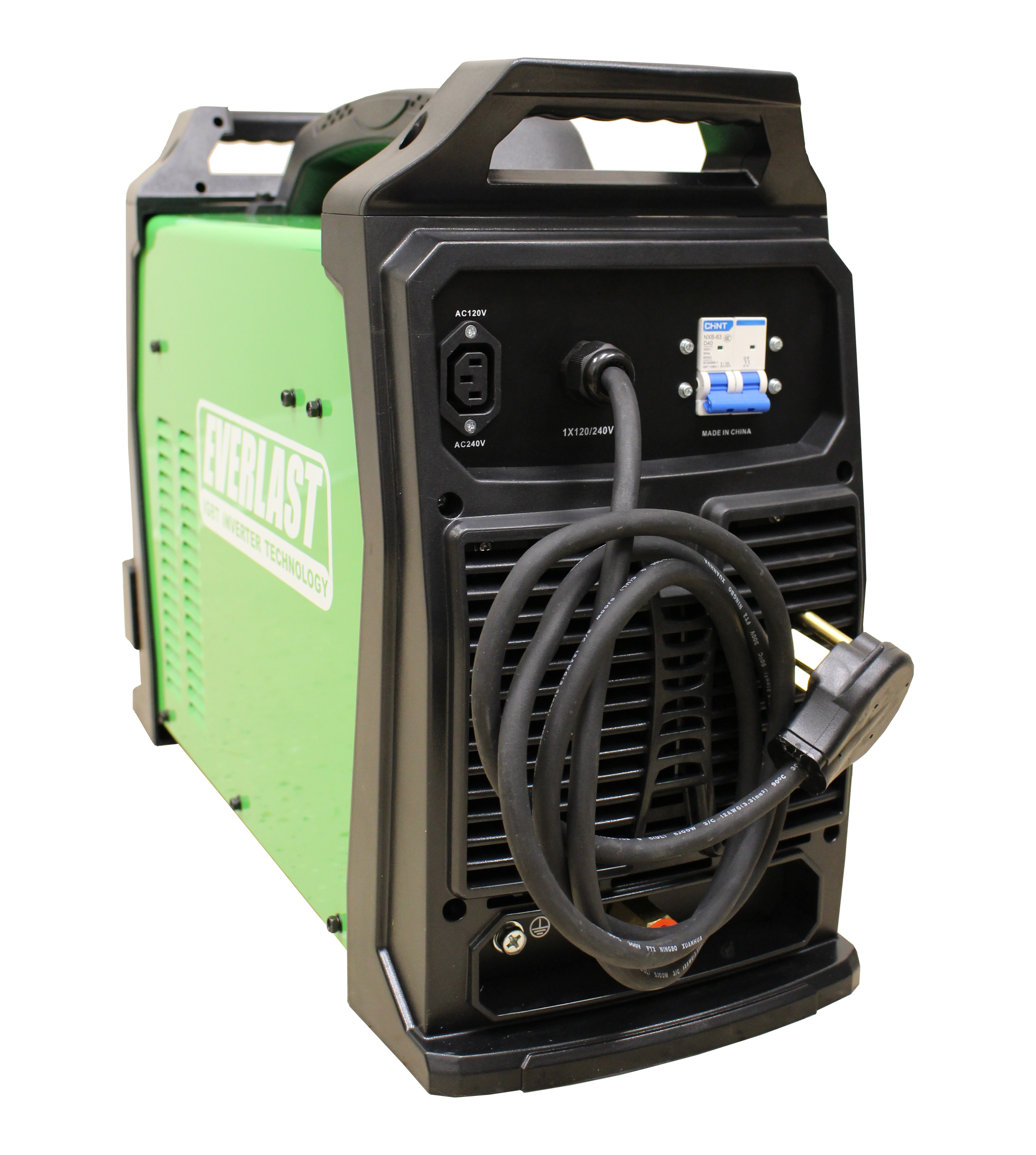

  • 240V Outlet in rear for optional WC 300 water cooler
  • Pre flow and Post flow control for gas
  • Arc force control (DIG) for stick helps to reduce spatter and improve arc performance
  • Pulse frequency ranges from .5-150 Hz in AC and DC mode


  • IGBT Type: Individual IGBT
  • Inverter Type: Digital/Micro-controlled
  • Output Type: AC/DC TIG, DC Stick
  • Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
  • Max Rated TIG Amps: @240V: 200 Amps
  • Max Rated Stick Amps: @240V: 160A
  • TIG Amps @ Rated Duty Cycle: @240V: 200A/18V @ 60% Duty Cycle/ 40º C - 160A/16.4V @ 100% Duty Cycle/ 40º C
  • Stick Amps @ Rated Duty Cycle: @240V: 160A/26.4V @ 35% Duty Cycle/ 40º C - 130A/25.2V @ 60% Duty Cycle/ 40º C - 100A/24V @ 100% Duty Cycle/ 40º C
  • Max Inrush ( I1MAX ) Amps: 240V: 31A
  • Maximum Rated (I1EFF ) Input Amps: 240V: 23A
  • OCV: TIG: 68V - Stick: 68V
  • TIG Output Range DC: 240V: 5A-200A/10.2V-18V
  • TIG Output Range AC: 240V: 20A-200A/10.8V-18V
  • Stick Ouput Range DC: 240V: 5A-160A/20.2V-26.4V
  • Stick Function: Adjustable Arc Force Control
  • Stick Hot Start Type: Auto Adaptive Hot Start
  • 6010/Cellulose Capable: Limited to 6011
  • Minimum Amp DC TIG Start: 5A
  • Minimum Amp AC TIG Start: 20A
  • TIG Start Type: HF & Lift TIG
  • Memory: No
  • End Amp Range: Fixed Minimum
  • Upslope Time: Fixed, Minimum
  • Down Slope Time: 0-25 Seconds
  • Preflow time: 0-10 Seconds
  • Post Flow Time: 0-25 Seconds
  • TIG Pulse: Yes
  • Standard DC Pulse Frequency: .5-150Hz
  • Standard AC Pulse Frequency: .5-150Hz
  • Pulse Time On (Duty Cycle): 10-90%
  • Pulse Amp Range: 5-95% of welding amps
  • AC Frequency (Hz): 20-250Hz
  • AC Balance Range: 30-70% of Electrode Positive
  • AC Wave Forms: Advanced Square Wave
  • Remote Control: 2T/4T
  • Foot Pedal: Upgraded NOVA Foot Pedal



  • Weld steel to a maximum of 5/16" single pass (240V)
  • Weld steel to a maximum of 3/16" single pass (120V)
  • Weld steel to a maximum of 1/2" multi-pass(240V)
  • Weld steel to a maximum of 3/8" multi-pass (120V)
  • Weld aluminum to a maximum of 1/4" single pass (240V)
  • Weld aluminum to a maximum of 1/8" single pass (120V)
  • Weld aluminum to a maximum of 3/8" multi-pass (240V)
  • Weld aluminum to a maximum of 1/4" multi-pass (120V)
  • Weld to a minimum of .007" Steel
  • Weld to a minimum of .020" Aluminum


  • Weld with a minimum of 1/16" diameter electrode
  • Weld with a maximum of 1/8" diameter electrode (240V)
  • Weld with maximum of 3/32"-1/8" diameter electrode (120V)
  • Not Rated for E6010 Use

TIG limits are recommended based off of practical limits and industry recommended standards for single and multi-pass welds.

Stick min/mas recommendations are general and may vary between manufacturers and electrode types.

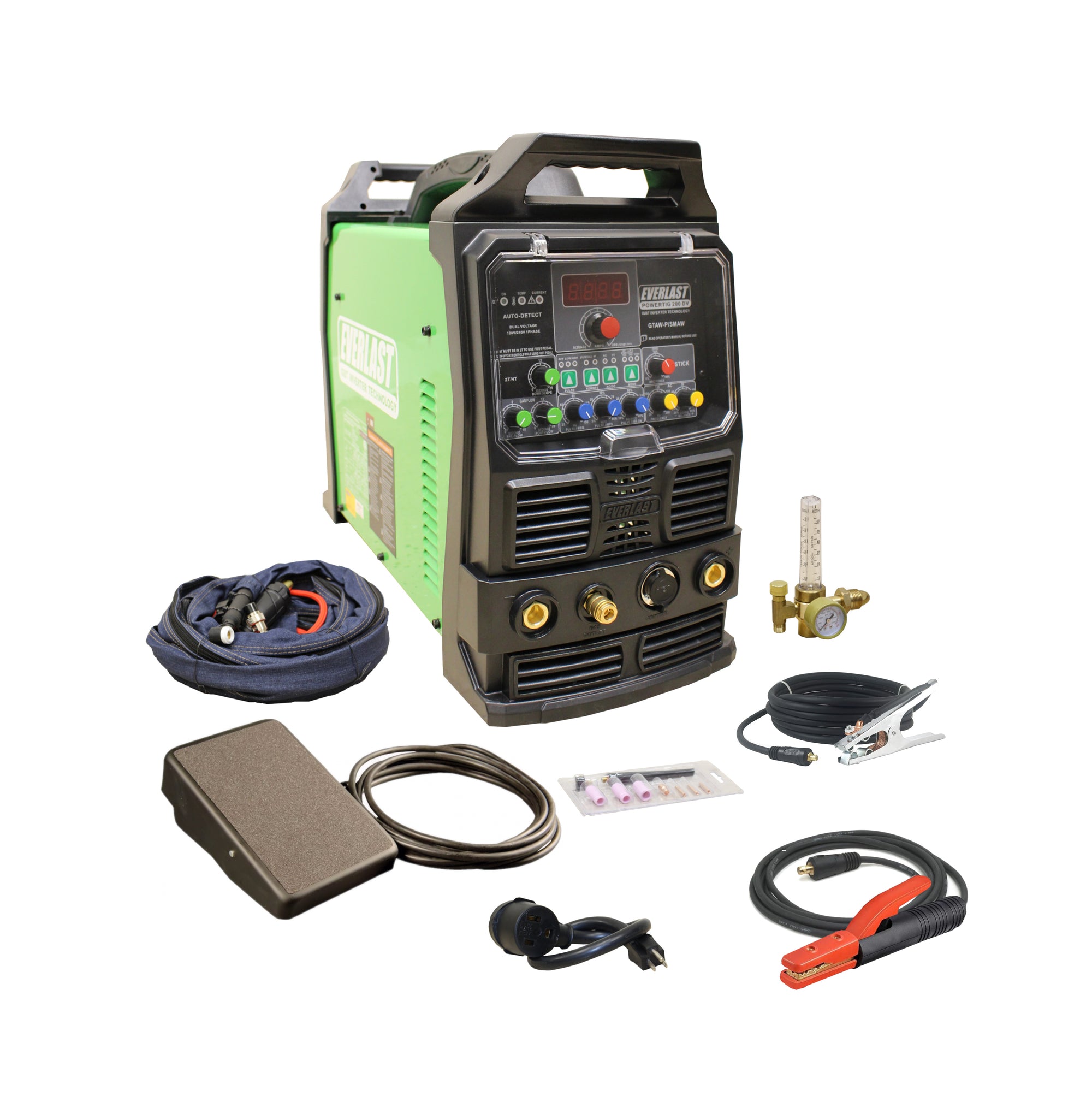

  • Single Phase 240v Digital Ac/Dc Tig Machine
  • W/I Sr-26-4m Super Soft Red-hose Torch
  • 400a Australian Style Electrode Holder
  • Yh16-3m Electrode Cable
  • 300a Earth Clamp
  • Yh20-3m Earth Cable
  • Regulator
  • 2m Pvc Gas Hose
  • FREE UPGRADED Nova Foot Control Pedal




  • Power Cool 300 Water Cooler
  • ProCart 330
  • Foot Pedal
  • Amp Control Slider
  • Welder Cover
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • Air-cooled 9/17/26 series TIG torches
  • Water-cooled 18/20 series TIG torches
  • Amp Control TIG torches
  • TIG Consumables Kits


240/120V adapter is included. Use only with generators certified by the manufacturer as "clean power". Use with clean power generators rated for at least 8500 Surge Watts.
