Power i-MIG 253DPi (Double Pulse MIG Welder)



  • digital_display
  • igbt_equipped
  • _dc
  • 1_phase

Notify me when this product is available:

The Power i-MIG 253DPi features the latest in inverter based, pulse MIG technology.  This welder is ideal for welding aluminum and bronze brazing activities in the automotive industry.  It features two types of synergic pulse: Single and Double. The Single Pulse is perfect for control heat and wet in and burn through of heat sensitive metals where HAZ issues are a concern, such as the auto-body businesses where new alloys require special welding and brazing processes to repair frames and panels safely and reliably.  With Single pulse, increased production speed welds are possible without over-melting or the metal, allowing for out of position welding of aluminum.

Double pulse features a "stair-stacked" pulse which features the ability to stack the single pulse into two basic layers, which helps to form a "stack of dimes" TIG look in the weld.  This is ideal for welds where appearance and strength count equally and is required for best possible appearance without resorting to TIG. The unit can also be used in a synergic MIG mode without pulse and a basic non-pulse, non synergic mode as well, where full control over all parameters are possible manually.  To prevent crater cracking and cold starts the unit has several features which include slope up, hot start, down slope.  Pre and post flow are standard features as well, which help prevent porosity at the beginning and end of welds where it is common to develop weld flaws.  If you find a program you like in a manual setup mode, you can easily save it with the capacity to store 9 major programs.  The unit is programmed with a possible 40 different, well designed and tested synergic programs for standard and pulse MIG operation.

Companies and individuals who are looking for the consummate professional MIG machine will appreciate the ability  to fine tune the arc even while in synergic mode, a  hallmark characteristic of all Everlast synergic capable MIGs.  The Power i-MIG 253DPi brings the price significantly down from competitor models, making this one of the affordable and capable pulse MIG welders on the market.  There's no longer any need for a company or individual to spend $10,000 or more on a special welding machine to repair modern alloys. The machine can be used to weld aluminum, bronze, steel, or stainless.

When welding aluminum, the standard gun works well, but an optional spool gun or push-pull gun can be used to feed wire from .030" to .045" in diameter using the synergic pulse feature.  The 60% duty cycle at 250 Amps proves this unit is a serious heavy-weight contender.  If you really want to compare to other units in this class, check out other manufacturer's duty cycle at maximum output.   Some can only operate at maximum output for 10 seconds.  Others are only at 10% at maximum output.

Now when you consider that this is a measure constant welding that you can perform 10 minute period of time( as is the standard used in the USA and Canada).  Imagine having to sit idle for 9 minutes and 50 seconds after completing a 10 second weld before you start your next 10 second weld!


PLEASE NOTE: This machine does not have a plug fitted. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

Manufactured and compliant with IEC/AS 60974.10, CE Guaranteeing your electrical safety and performance. INDUSTRIAL USE ONLY


Download PDF Manual HERE

Out of stock


  • Synergic GMAW-P/SMAW Operation (MIG/Stick)
  • Single Pulse and Double Pulse MIG, fully synergic with synergic and non-synergic basic MIG mode (non-pulse)
  • Industrial duty cycle of 60% at 250
  • Burn back control

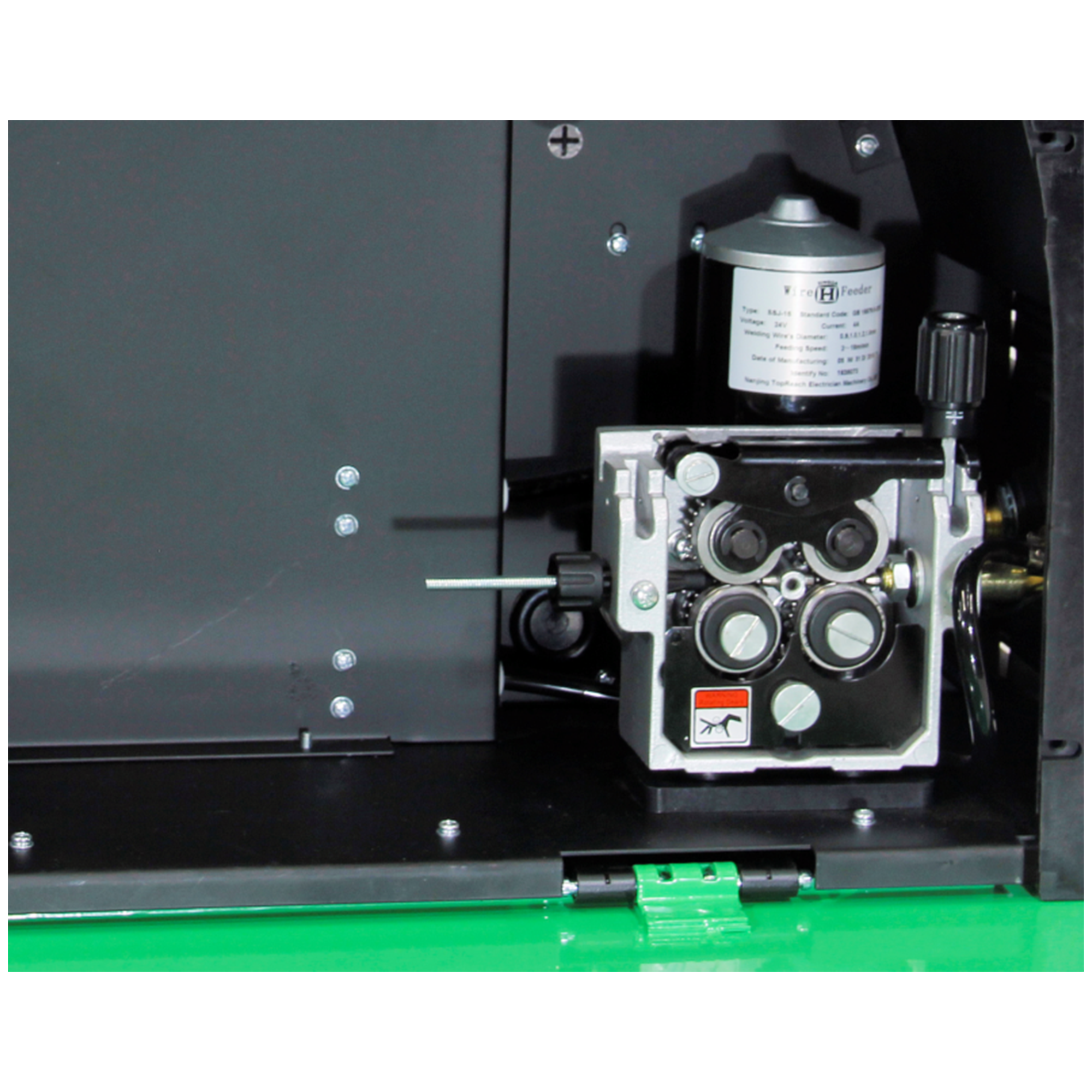

  • Heavy Duty Cast aluminum feed mechanism with true 4 roll driven feeding
  • Euro Quick connect series 24 MIG gun (Binzel/Trafimet compatable)
  • Arc force control useful for fine tuning arc characteristics in MIG and Stick modes

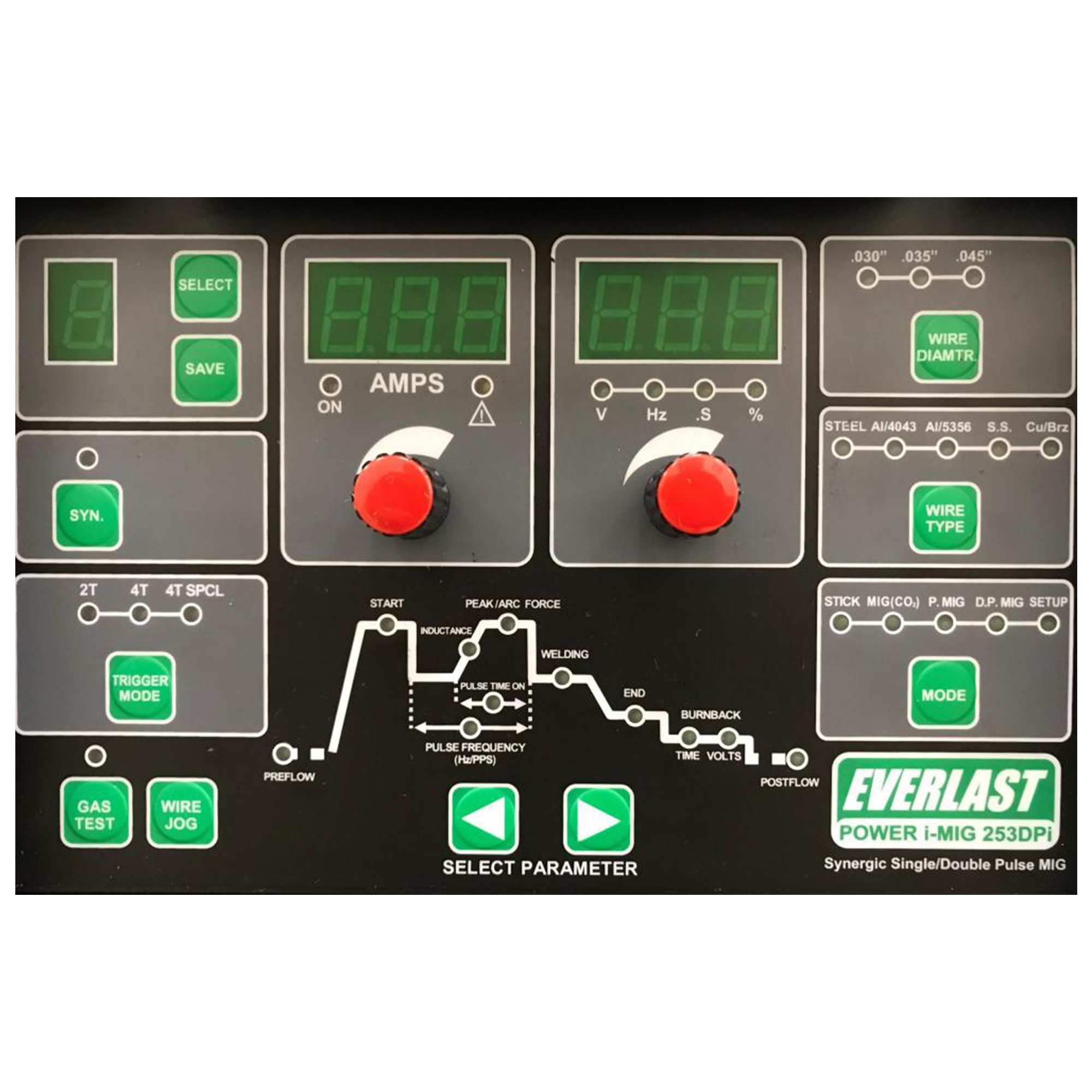

  • Dual Digital Display allows precise and repeatable setting of welding parameters
  • Save up to 9 favorite programs
  • Uses a 12" (30-44 lbs) roll of welding wire, or can use an 8" (10-12 lbs) with available adapter
  • Digitally Controlled IGBT Inverter with programmable memory
  • Stick weld function
  • Spool Gun and Push/Pull Gun capable
  • Includes poly liner for use with Aluminum and standard gun (50XX series Aluminum)


  • Type: Digital/Micro-controlled IGBT Inverter
  • Output /Process Type: MIG, Stick
  • Voltage/phase: 220/240 V 1 PHASE
  • Max Rated MIG Amps: 250A
  • Max Rated Stick Amps: 250A
  • MIG Amps/Volts @ Rated Duty Cycle: @250A/26.5V @ 60% Duty Cycle/ 40º C - 200A/28V @ 100% Duty Cycle/ 40º C
  • Stick Amps/Volts @ Rated Duty Cycle: @250A/26.5V @ 60% Duty Cycle/40º C - 200A/28V @ 100% Duty Cycle/40º C
  • Max Inrush ( I1MAX ) Amps: 45.5A
  • Maximum Rated (I1EFF ) Input Amps: 36A
  • OCV: 80V
  • MIG Output Range: 40-250A/ 16-30V
  • Stick Output Range: 10-250A/20.4-30V
  • Variable MIG Inductance/Stick Arc Force Control: Yes
  • Spool Gun Capable: Yes
  • Pulse: Double/Pulse on Pulse
  • Pulse Frequency: 10-250 Hz Single Pulse Mode
  • 0-9.9 Hz Double PulsePulse Time On: Synergically controlled
  • Pulse Volts: Synergically controlled, with Voltage offset
  • Standard Drive Roll wire size: .030”-.045”
  • Separate wire feeder: No, self contained
  • Number of Drive rollers: 4
  • Max Wire Feed Speed: 600IPM
  • Max Wire Roll Diameter: 12” (full size up to 44lb)
  • Memory: Yes
  • Preflow time: 0-10S
  • Post Flow Time: 0-10S
  • Flux Core: Yes, Optional
  • 2T/4T /Torch latch/Trigger: Yes

Other Features:

  • 9 Program Memory
  • Stick mode
  • Spool gun and Push pull gun capability
  • Hot Start Time 0-2 Seconds
  • Hot Start Intensity 0-100%
  • MIG Inductance 0-100%
  • Synergic and Manual basic MIG modes
  • Synergic Single Pulse and Double Pulse MIG modes
  • Extra Drive Rolls included .023"-.045" Hard Wire
  • 1 Aluminum drive roll, .035" and .045" (nominal diameter) and poly liner for 50XX wires.
  • Burn Back Control 0-2 Seconds
  • Synergic Pulse


  • Weld up to a maximum of 7/16" Steel/Stainless single pass
  • Weld over 3/4" Steel/Stainless multi-pass
  • Weld a minimum of 27 gauge Steel/Stainless (Pulse mode)

For MIG welding Aluminum:

  • use the supplied 10 ft MIG gun, U-groove drive rolls and the polymer liner (best choice for shorter distances).  For longer required distances, choose between the Parker SG360A Push-Pull Gun (Recommended for longer distances) or the Parker DSP 360 (Recommended for small weld quantities/longer distances)  For Brazing, follow same recommendations for gun selection.
  • Weld up to a maximum of  3/8" in a single pass weld Aluminum
  • Weld over 3/4" in multiple pass welds Aluminum
  • Weld a minimum of 24 Gauge Aluminum (Pulse mode)

For Brazing with MIG:

  • Braze down to a minimum of .025"
  • Upper practical limit is 3/16"-1/4" for the Brazing Application


  • Weld up to a maximum of 5/32" diameter electrode
  • Weld with a minimum of 1/16" diameter electrode

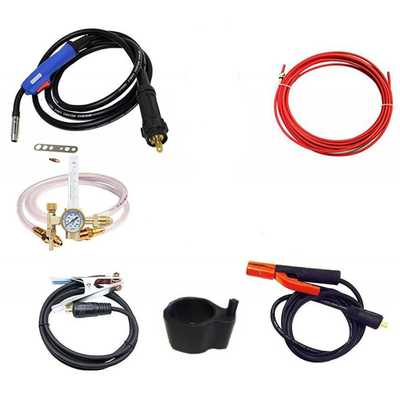

  • Single Phase 240v 50hz Double Pulse Mig/Tig/Mma Machine
  • Australian Style Regulator
  • 32a Powercable Plug
  • 24kd-3m Torch
  • Teflon Wire Liner-3m 1 Pc
  • 0.9/1.2 U Roller, 0.9/1.2  V Roller, 0.9/1.2  Wire Roller
  • 1.2al Contact Tip 2
  • 3m Electrode Cable
  • 400a Australian Style Electrode Holder
  • Yh25-3m Earth Cable, 300a Earth Clamp
  • 2m Pvc Gas Hose
  • Spool Gun & Push Pull Gun Control.


  • Parker Spool gun
  • Parker Push-Pull gun
  • Various size V-Groove Drive Rolls (Hard Wire)
  • Various size Flux Core Drive Rolls
  • Various size U-Groove Drive Rolls (Aluminum Wire)
  • Power Cart 250
  • Welder Cover
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • Different MIG Guns
  • MIG Consumables Kits


If running on a generator, make sure the generator is rated by the generator manufacturer as providing "clean power", which is 5% or less THD (Total Harmonic Distortion).  Failure to do so may result in failure of the unit.  Use with any generator not labeled as clean power wil void the warranty on the affected parts. Use with a minimum of 11,500 Watt generator.  Do not use long or underated extension cords with this unit.

This unit is not designed to weld with E5010 welding rods.
