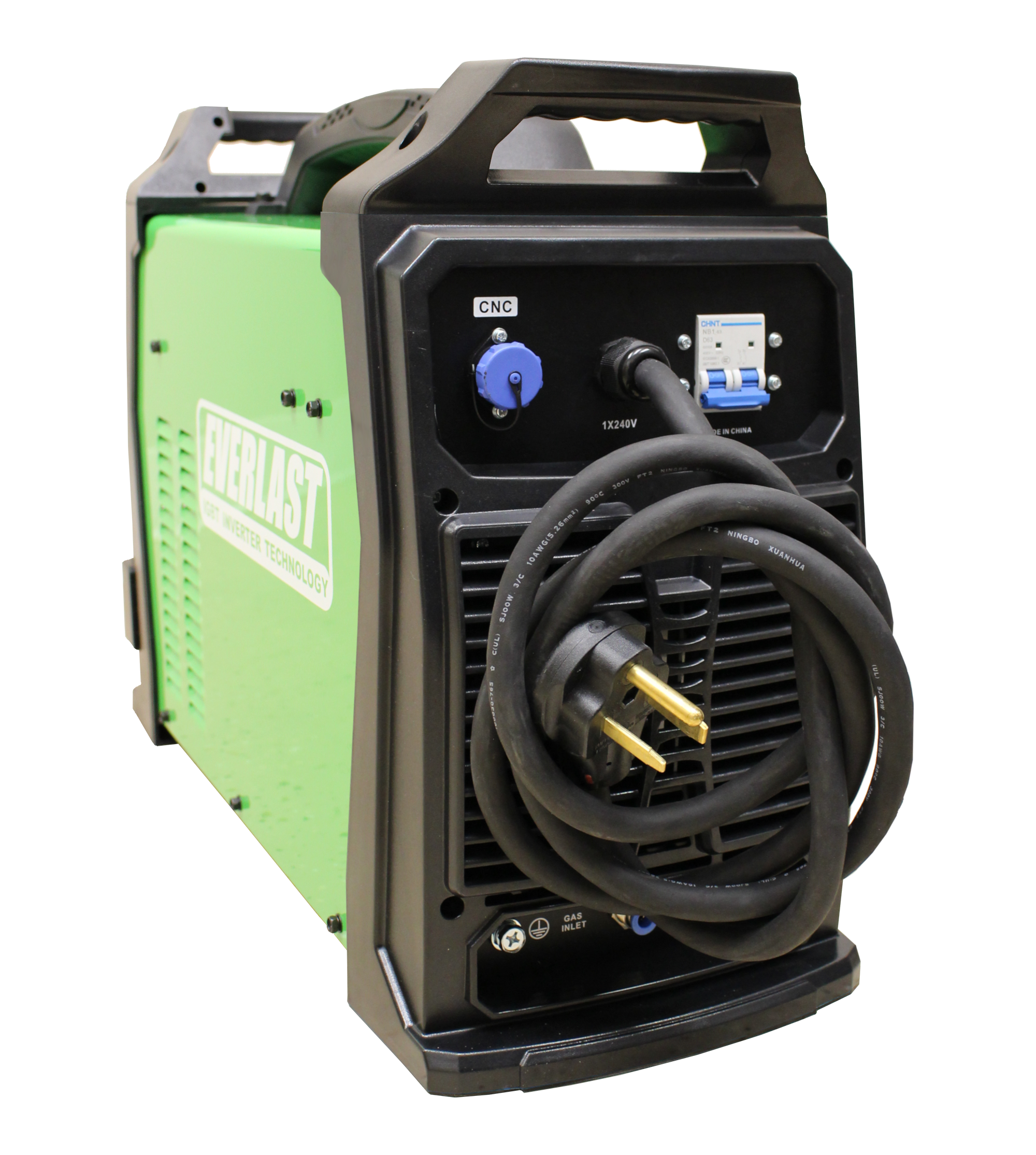

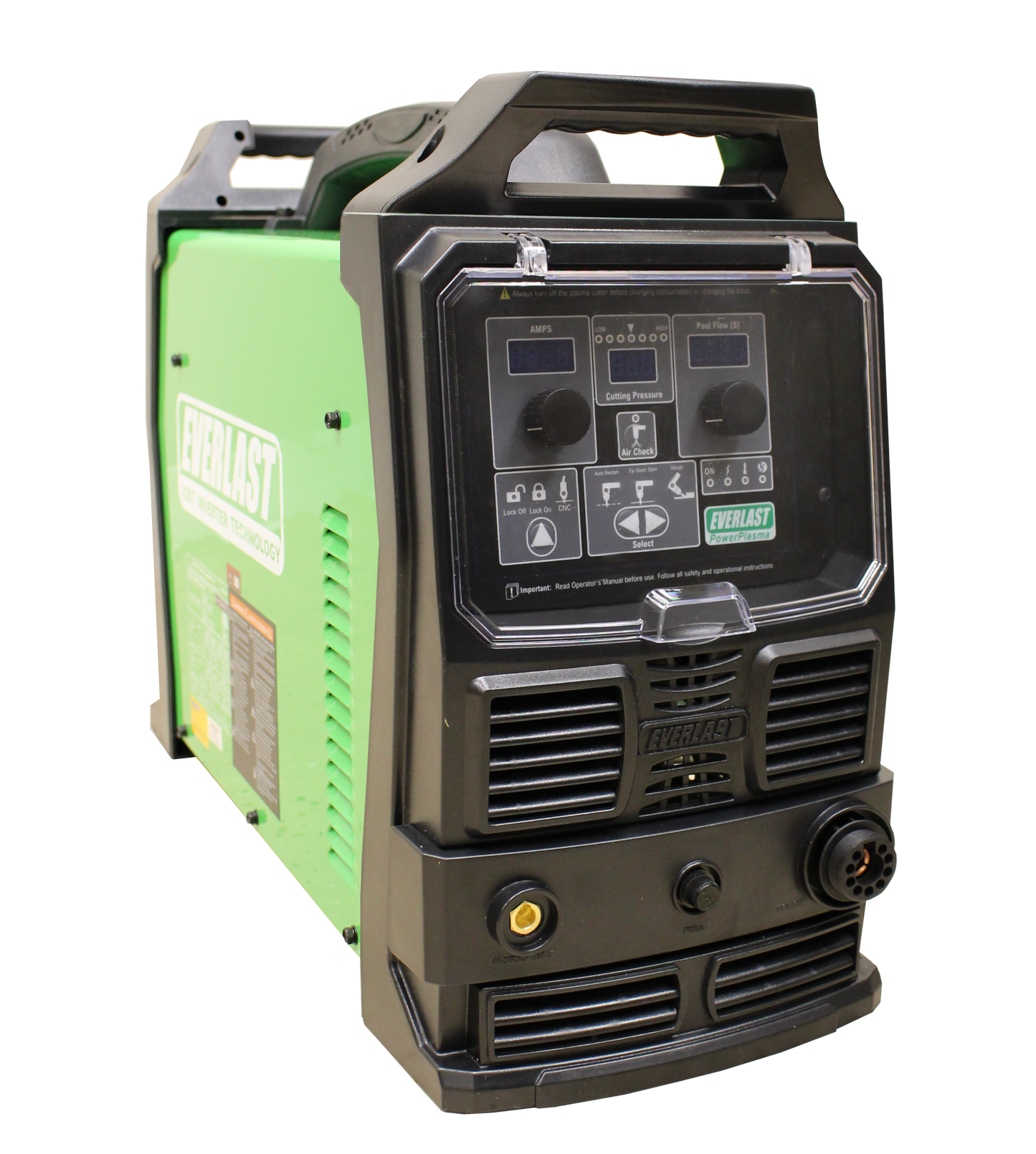

PowerPlasma 62i

  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • WHAT'S INCLUDED
  • OPTIONS

PP62i

  • Lightweight
  • digital_display
  • igbt_equipped
  • 1_phase

If you are wanting more power, unquestionable cut quality, and reliabilty in a plasma cutter, but you just can't justify spending your green for something that is gray, the PowerPlasma 62i is the answer.  As the all new replacement for the ever popular PowerPlasma 60S, the PowerPlasma 62i has been built around a reliable, tested all digital inverter platform.

This allows the unit to do more with less circuitry and points of failure than ever before.  This plasma cutter though has kept all of the old features and added many new ones, so nothing was sacrificed in the way of features.  The display has been upgraded to offer large, easy to read numbers even in bright light.  The new addition of digital readouts for both the Post-Flow time and the Air-Pressure has added to the plasma cutter's operator oriented design.

Along with a digital display for the air pressure, the unit features an color coded LED guide system that helps you to properly set the air pressure for each cut mode without having to refer to a chart or manual.  A new gouge feature has been added for cutting out metal defects and old welds.  Also, a separate function has been added for CNC operation.





PLEASE NOTE: Everlast Welders Australia strongly recommends the use of a 15A RCD box between the machine and wall socket during use. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.



Download PDF Manual HERE





ownload PDF Manual HERE

In stock

FEATURES

  • Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
  • NEW! Digitally controlled design that closely manages cutting arc
  • NEW! Super bright displays, readable in bright light conditions
  • NEW! Gouge function
  • Cuts virtually any type of metal with ease
  • Simple to use torches with inexpensive service parts and consumables
  • Commercial class, 60% Duty cycle at 60 amps
  • Clean, smooth cuts with the genuine iPT 60 Torch
  • Blowback start starts are fast and reliable
  • Pilot arc improves performance and cutting on dirty, painted, or rusted metals
  • 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of continuous operation if no cutting is present to prevent premature consumable wear

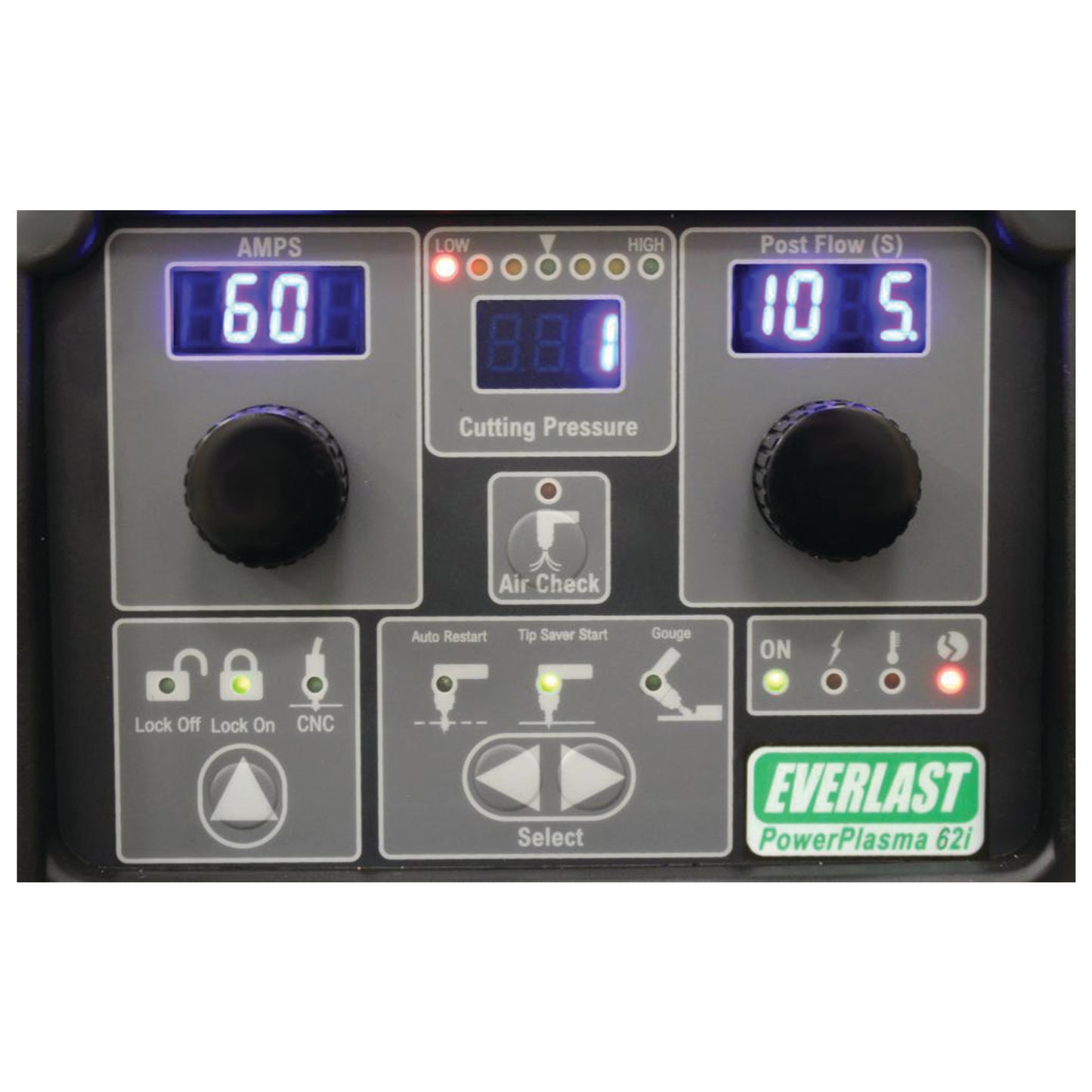

  • Digital Air Pressure Display, and LED Air Pressure guide system adapts to different cut modes for best air pressure setting without consulting a manual or chart
  • Self-diagnosing
  • Adjustable postflow timer with digital display for maximum consumable life and ease of use.
  • The name brand IGBT's are digitally controlled which increases cut quality and consumable life.
  • CNC socket and new, separate CNC cut mode for CNC use on plasma tables (machine torch optional)
  • Suitable for use with 11,000 W "clean power" generators.

SPECIFICATIONS

  • Type: IGBT
  • Voltage/phase: 220/240 V 1 Phase
  • Output Amp/Volt Range: 20-60A; 88-104V
  • OCV: 240V
  • Max Inrush ( I1MAX ) Amps: 41A
  • Maximum Rated (I1EFF ) Input Amps: 32.4A
  • Duty Cycle At Rated Amps/Volts: 60% @ 60A/104V - 100% @ 50A/100V
  • Arc Start Type: Blow Back (Piston type)
  • PilotArc: Yes
  • Torch Type: Italian designed iPT 60
  • CNC Interface Port: Yes
  • Adjustable Post Flow Timer: Yes
  • Gouging: Light to Medium
  • Recommended Cutting Air Pressure: 75 psi
  • Recommended Compressor Capacity: 6CFM @ 90 psi/ 30 gallon tank
  • OK-to-Cut Indicator/Low Air pressure safety: Yes

Minimum/Maximum:

  • Up to 3/4" daily use @ 15-20 ipm
  • Up to 1" clean cut @ 8-12 ipm
  • Up to 1 1/4" severance cut @ 3-5 ipm
  • Pierce up to 1/2"



Plasma cutting capacity is affected by several factors.  Ideal cutting conditions require dry air, new consumables, proper air pressure, etc.   Quality of cut depends upon consumable orifice size, standoff height, and travel speed.

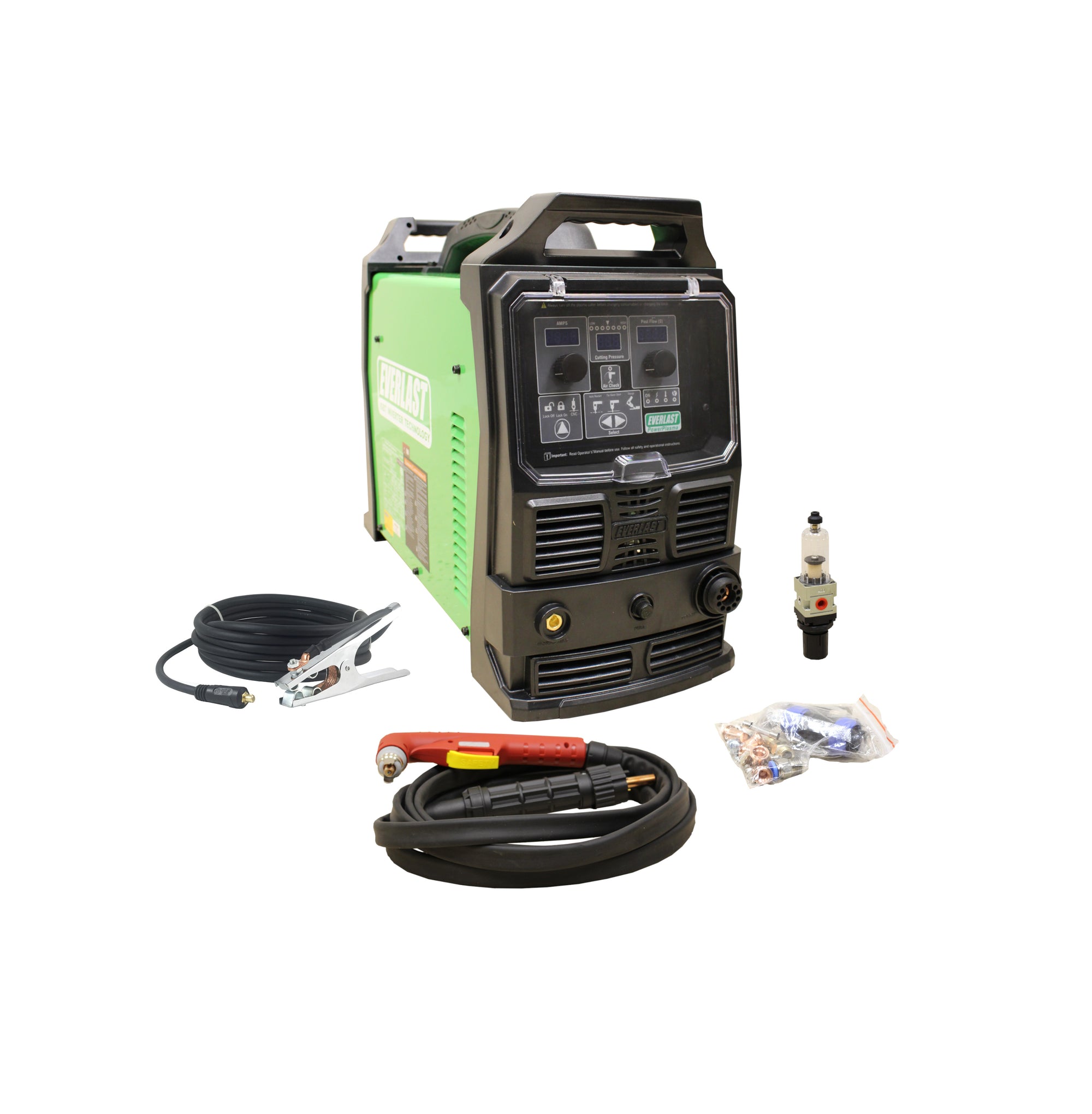

WHAT'S INCLUDED

  • iPT 60 hand held torch 14ft. with Euro quick-connect central connector
  • Work clamp
  • Air pressure regulator/water trap (Separate air dryer is required to reduce consumable wear and prevent torch damage)
  • Consumable starter kit

OPTIONS

  • ProCart 330
  • Welder Cover
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • iPT-60 Plasma Torch, 25 ft
  • iPT-60 Plasma Consumables Kits
  • iPT-60M Plasma Machine Torch (CNC)

NOTES

To improve consumable life and prevent torch damage, the customer must supply and install a separate air dryer inline in addition to the regulator/water trap supplied by Everlast. The water trap Everlast supplies with the unit is not designed to remove all moisture from the air.

When using on a generator, the generator must be "clean power" rated by its manufacturer, which is 5% or less Total Harmonic Distortion (THD).  Failure to operate on a clean power rated generator will damage the unit and void the warranty.  For more generator information and recommendations, consult the manual.





If operating on a generator, the generator must be certified by its manufacturer to have "clean power" output. Use a generator that is rated for a minimum of 10,000 surge watts.
