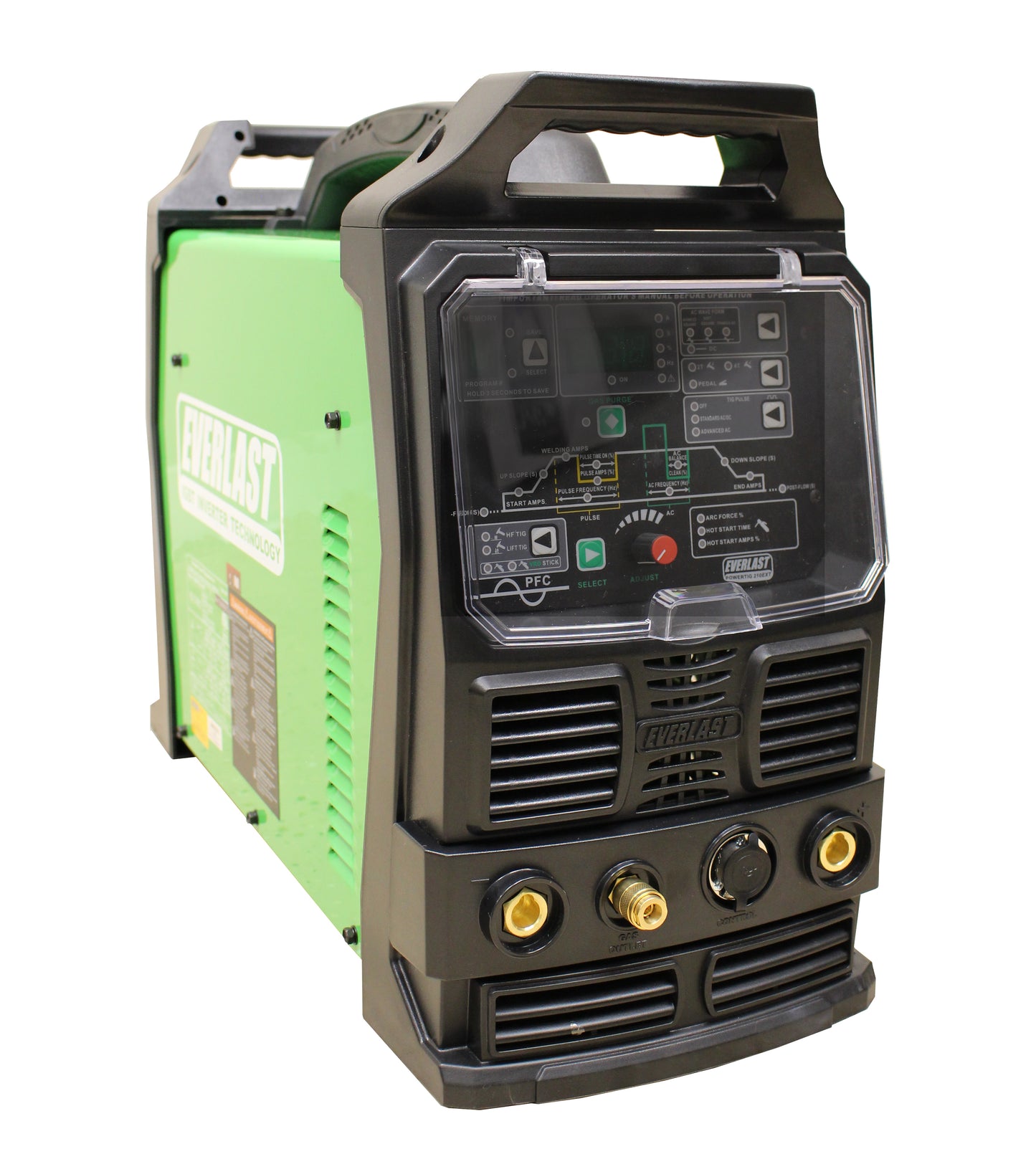

PowerTIG 210EXT

  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • WHAT'S INCLUDED
  • OPTIONS

PT210EXT

  • Lightweight
  • digital_display
  • igbt_equipped
  • 1_phase

If you are wondering what having digital microprocessor control can mean, just ask anyone who has used it.  The benefits are numerous, whether its increased productivity, or increased weld quality, or the ability to make precise settings, and fine tune them to the exact standards required.

This is all part of the benefit of owning a PowerTIG 210 EXT.  This TIG/Stick welder from Everlast also features IGBT inverter technology which offers the best in arc stability and performance while reducing size and weight.  The unit features wave form control with three distinct wave forms: Advanced Square wave, Soft Square wave, and Triangular.  These help to offer flexibility while welding Aluminum.

But that's just part of the story.  This TIG/Stick welder also features programmable memory, adjustable AC Frequency, and adjustable AC balance control.  It also works quite well as a stick welder featuring items like adjustable hot start and arc force control for maximum welding flexibility.

The heavy duty HF arc start design reduces traditional HF component maintenance issues.  The unit also features two pulse modes, standard and advanced pulse.  In the advanced pulse mode the welder oscillates between AC and DC- polarity allowing fine fast freeze control on thin gauge aluminum, and greater penetration on thick plate aluminum.

Although the unit may seem quite complex in its list of features, it's really quite simple due in part to the intuitive design which leads to quick and easy to setup whether you are a welding professional or just an enthusiast.



PLEASE NOTE: To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.

INDUSTRIAL USE ONLY.



Download PDF Manual HERE

In stock

FEATURES

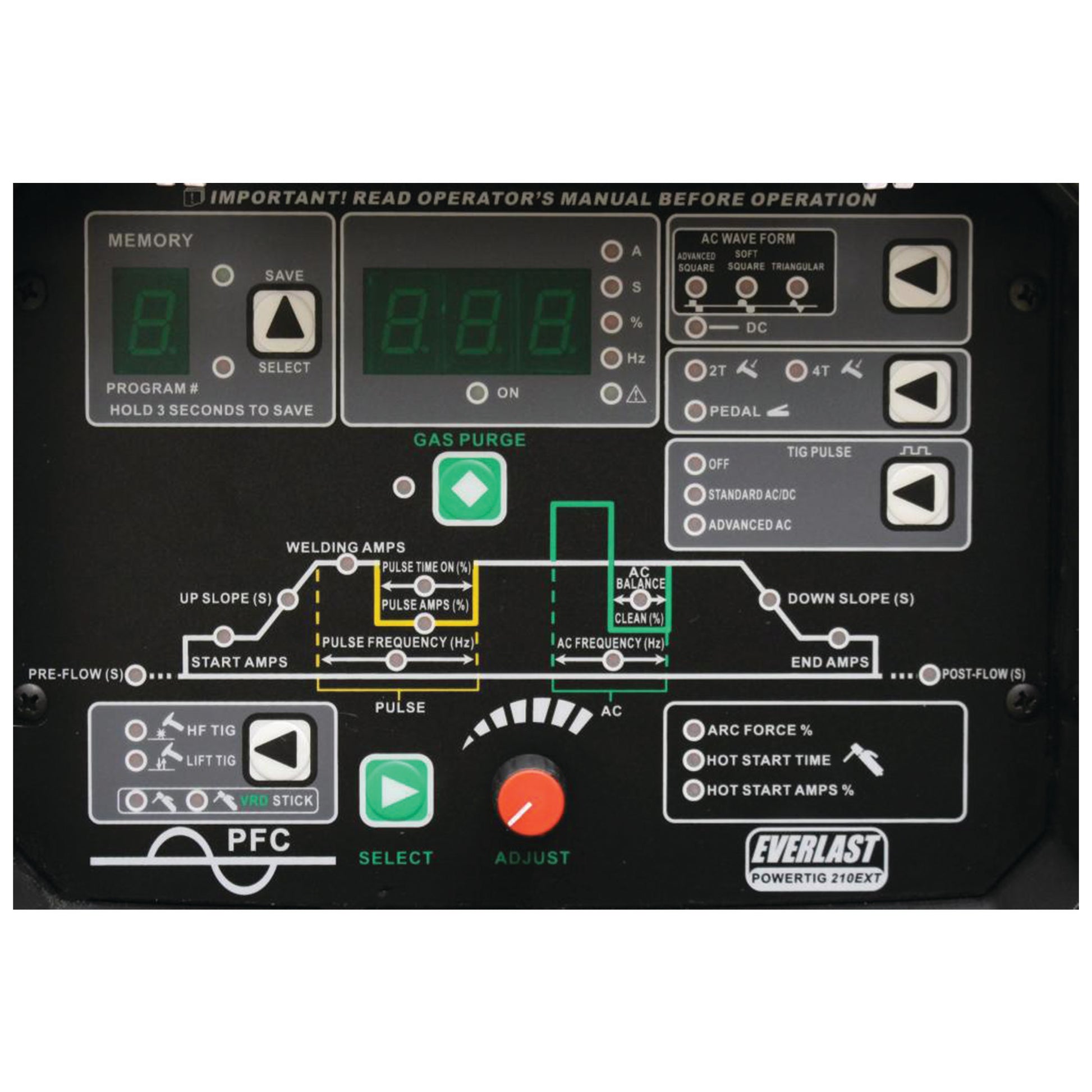

  • Microprocessor control offers precise management of welding parameters and functions.
  • Portable and Lightweight design offers rugged exterior and a flip down visor to protect panel from sparks and damage.
  • Offers standard type pulse feature for AC and DC, and a special Advanced Pulse for AC for welding thin material, increasing travel speed and reduces warping.
  • Can be used with optional finger amp control torch.
  • Wave form control offers 3 types of wave form for AC welding: Triangular Wave, Advanced Square Wave, and Soft Square Wave.
  • Programmable Memory allows user to save parameters for up to 9 different programs.
  • HF or Lift Arc capability in AC or DC modes.
  • Offers programmable Stick functions which include hot start time, hot start intensity and arc force control.

SPECIFICATIONS

  • IGBT Type: Module IGBT
  • Inverter Type: Digital/Micro-controlled
  • Output Type: AC/DC TIG, DC Stick
  • Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
  • Max Rated TIG Amps: 210 A Max Rated Stick Amps: 160A
  • TIG Amps @ Rated Duty Cycle: @240V: 210A/18.4V @ 60% Duty Cycle/ 40° C
  • Stick Amps @ Rated Duty Cycle: @ 240V: 160A/26.4V @ 60% Duty Cycle/ 40º C 130A/25.2V @100% Duty Cycle/40°
  • Max Inrush ( I1MAX ) Amps: @240V: 31A
  • Maximum Rated (I1EFF ) Input Amps: @240V:25A
  • OCV: 70V/<24V with VRD
  • TIG Output Range DC: @240V: 3A-210A/ 10.1V-18.4V
  • TIG Output Range AC: @240V:  5A-210A/10.2V-18.4V
  • Stick Ouput Range DC: @240V: 20A-160A/ 20.8V-26.4V
  • Stick Hot Start Amps: 0-100%
  • Stick Function: Adjustable Arc Force Control
  • Stick Hot Start Type: Adjustable Hot Start
  • Stick Hot Start Time: 0-2 Seconds
  • 6010/Cellulose Capable: Limited to 6011
  • Minimum Amp DC TIG Start: 5A
  • Minimum Amp AC TIG Start: 5A
  • TIG Start Type: HF and Lift Start
  • Memory: Yes
  • Start Amp Range: 240V @DC: 5-210A @AC: 5-210A
  • End Amp Range: 240V DC: 3-210A @AC: 5-210A
  • Upslope Time: 0-25 Seconds
  • Down Slope Time: 0-25 Seconds
  • Preflow time: 0-25 Seconds
  • Post Flow Time: 0-50 Seconds
  • TIG Pulse: Yes
  • Standard DC Pulse Frequency: .1-500 Hz
  • Standard AC Pulse Frequency: .1-250 Hz Advanced Square Wave & .1-10 Hz Soft Square, Triangular
  • AC Advanced Pulse Frequency: .1-10 Hz
  • Pulse Time On (Duty Cycle): 5-100%
  • Pulse Amp Range: 5-99% of Welding Amps
  • AC Frequency (Hz): 20-250 Hz
  • AC Balance Range: 5-90% of EP (+)
  • AC Wave Forms: Advanced Square Wave, Soft Square Wave &Triangular
  • Remote Control: 2T/4T with Torch Amptrol settings
  • Foot Pedal: Upgraded NOVA

Minimum/Maximum:

TIG:

  • Weld steel to a maximum of 5/16" single pass (240V)
  • Weld steel to a maximum of 5/8" multi-pass (240V)
  • Weld aluminum to a maximum of 1/4" single pass (240V)
  • Weld aluminum to a maximum of 1/2" multi-pass(240V)
  • Weld steel to a maximum of 1/8" single pass (120V)
  • Weld steel to a maximum of 1/4" multi-pass (120V
  • Weld to a minimum of .004" Steel
  • Weld to a minimum of .005" Aluminum

Maximum Figures for stick is based off of standard industry practice and practical limits for quality welds.

Stick:

  • Weld with a minimum of 1/16" diameter electrode
  • Weld with a maximum of 1/8" diameter electrode (240V)
  • Weld with a maximum of 3//32" diameter electrode (120V)
  • Not rated for E6010 use

Max electrode size ultimately depends upon class/type and manufacturer recommendations and formulations and may vary from brand to brand and class to class.

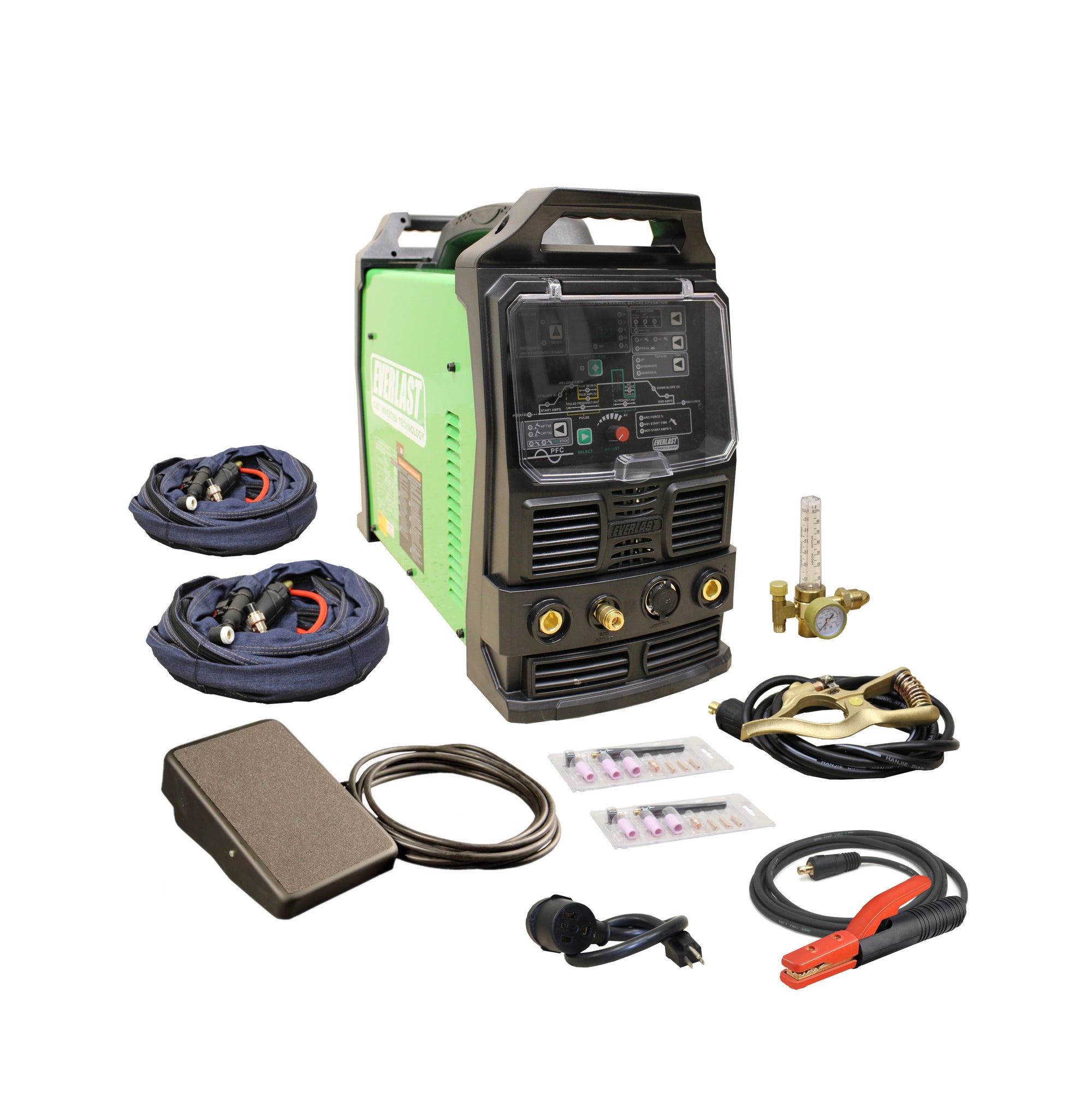

WHAT'S INCLUDED

  • Single Phase 240v Digital Control Ac/dc Tig Machine
  • W/I Wp-26f And Wp-9f 7.5m Super soft Red hose Torch
  • Yh20-3m Electrode Cable
  • 400a Australian Style Electrode Holder
  • Yh25-3m Earth Cable
  • American Style Brass Earth Clamp
  • 2m Pvc Gas Hose
  • Regulator.
  • FREE UPGRADED Nova Foot Control Pedal

OPTIONS



  • Power Cool 300 Water Cooler
  • ProCart 330
  • Foot Pedal
  • Amp Control Slider
  • Welder Cover
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • Air-cooled 9/17/26 series TIG torches
  • Water-cooled 18/20 series TIG torches
  • Amp Control TIG torches
  • TIG Consumables Kits

NOTES

Notes:

For generator use:  Use only generators that are certified as "clean power" by the manufacturer.  This means that the unit has 5% or less total harmonic distortion (THD).   For best results, when operating on 120V power, use a generator capable of  at least 3500 surge watts.   For best results while operating on 240V, use a generator rated for 8000W or greater. Do not use with a generator less than 7500 watts.

This unit is not recommended for use with E6010 electrodes and most rods with a cellulose-based flux.  Use E6011, if a cellulosic rod is required.
