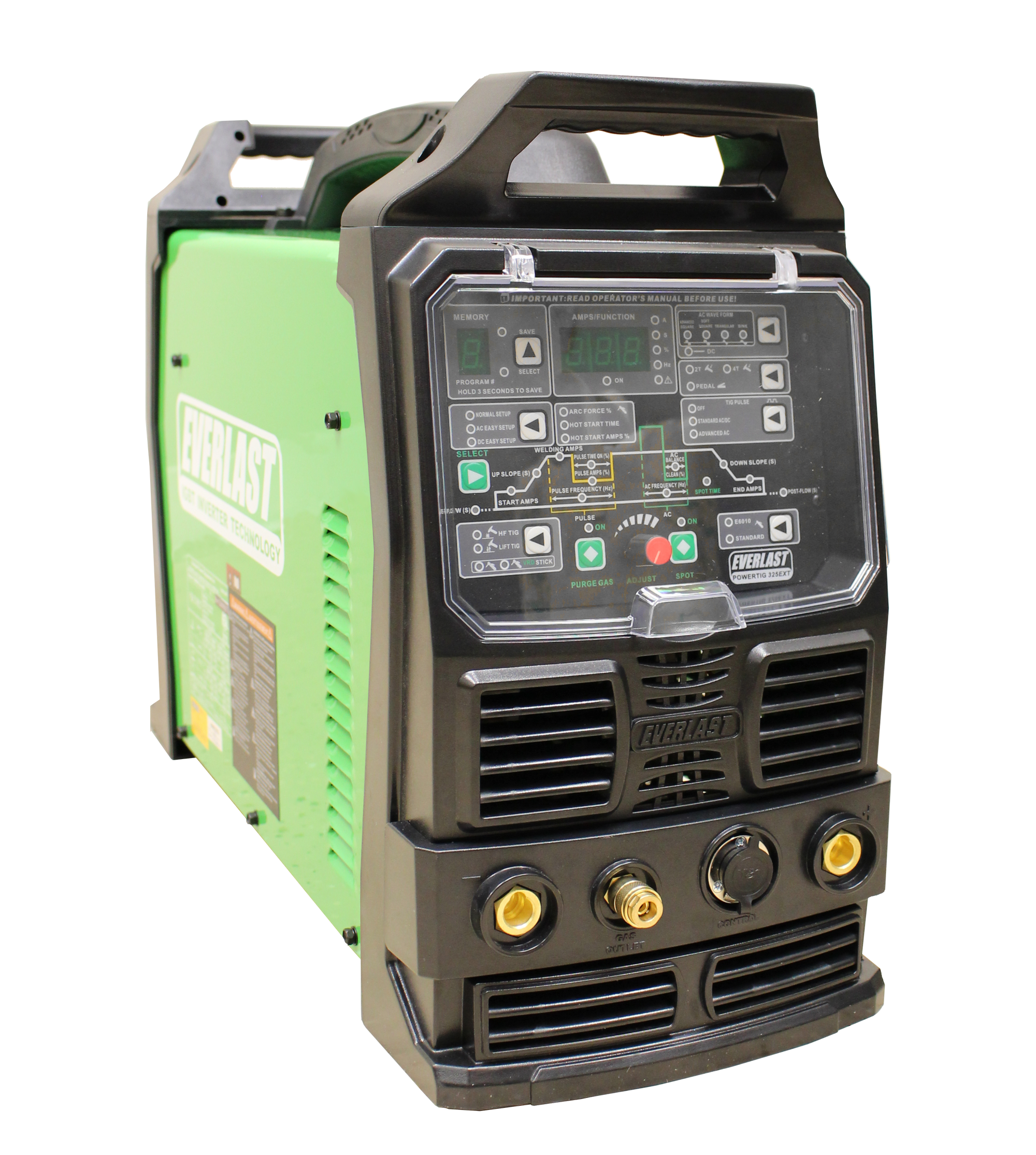

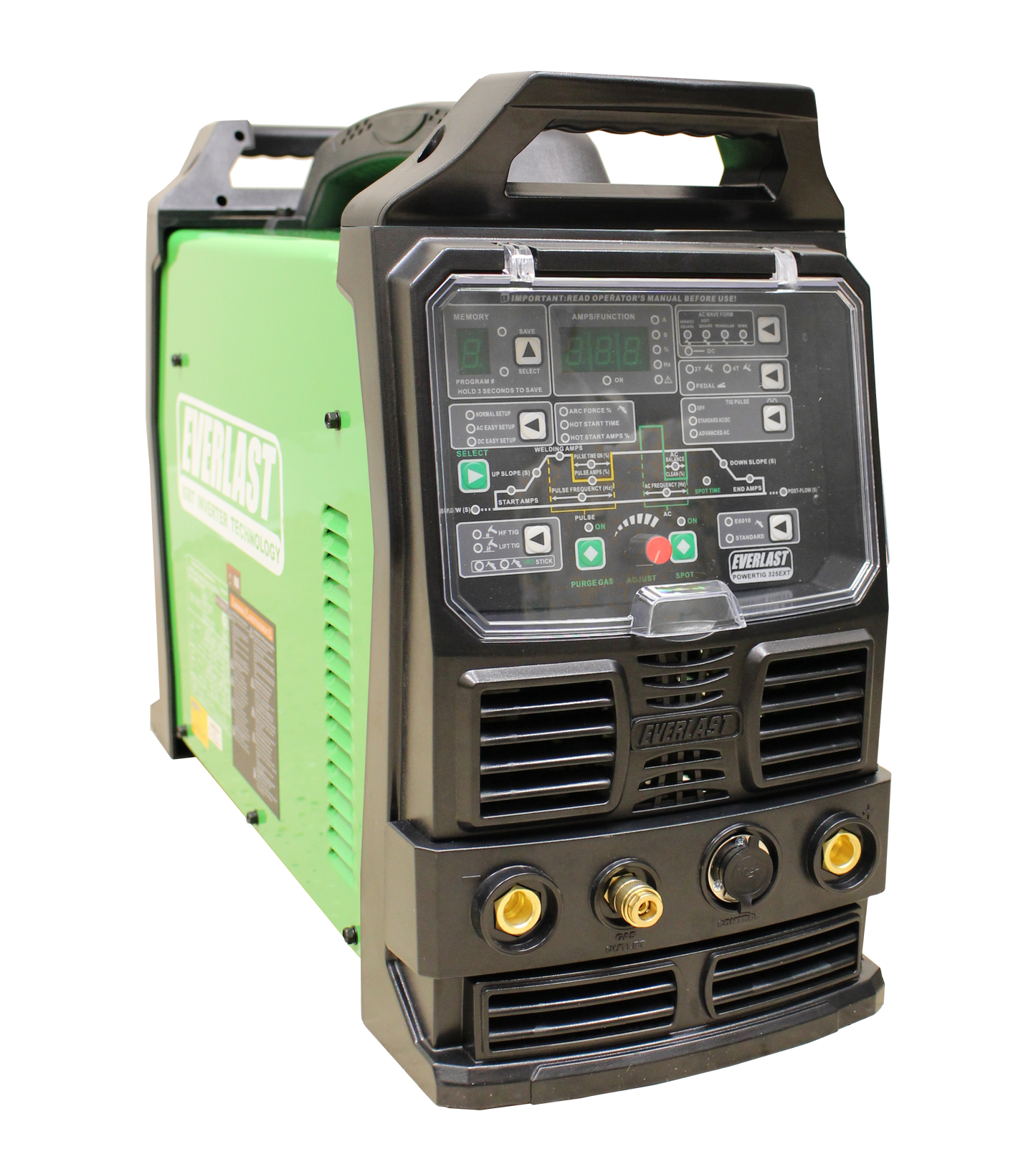

PowerTIG 325EXT (3 phase)

  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • WHAT'S INCLUDED
  • OPTIONS
Sale

PT325EXT

  • digital_display
  • igbt_equipped
  • 415v_3ph

The  PowerTIG 325EXT is built for superior industrial performance.  With Digital microprocessor control over the Infineon IGBT inverter, and up to 320 amps of welding Power, the PowerTIG 325EXT packs the most punch of any AC/DC  TIG welder in the Everlast line.  The module design of the IGBT's creates a reliable platform designed for years of service.

The unit is equipped with many features that improve its value in the shop.  One of the features that is highly useful is the Advanced Pulse in AC which can greatly increase penetration while welding aluminum, and make it seem like you are welding with a lot larger machine than you are.

Wave form control, AC frequency and AC balance control combine toround out the welder into a very capable Aluminum welder.   However, the DC capabilities should not be overlooked either with plenty of features which includes a standard pulse frequency up to 500 Hz, and a wide range of adjustable 2T/4T functions.



Please Note: This model of PowerTIG 325EXT is available and configured to operate on a 415V ~3 Phase input power. To achieve the maximum performance out of your Everlast Machine please ensure your current breaker and wiring/socket setup at your place of use is sufficient enough to achieve this. For example you may be required to upgrade your breaker to a 32A dedicated circuit to suit, therefore allowing you to achieve your machines full duty cycle. If in doubt please contact your local licensed electrician for more info prior to purchasing and please see terms and conditions/warranty for more information.



Download PDF Manual HERE

In stock

FEATURES

  • Digital microprocessor control
  • IGBT Power Modules increase reliability and performance
  • Operation down to 5 Amps DC and 10 Amps AC
  • 2T/4T/ Pedal operation modes with additional 2T/4T mode for torch amptrol operation.
  • Wave form control in AC provides 4 wave forms: Sine, Triangular, Soft Square and Advanced Square Wave
  • Gapless, Solid-State High Frequency  design reduces maintenance issues and improves start reliability

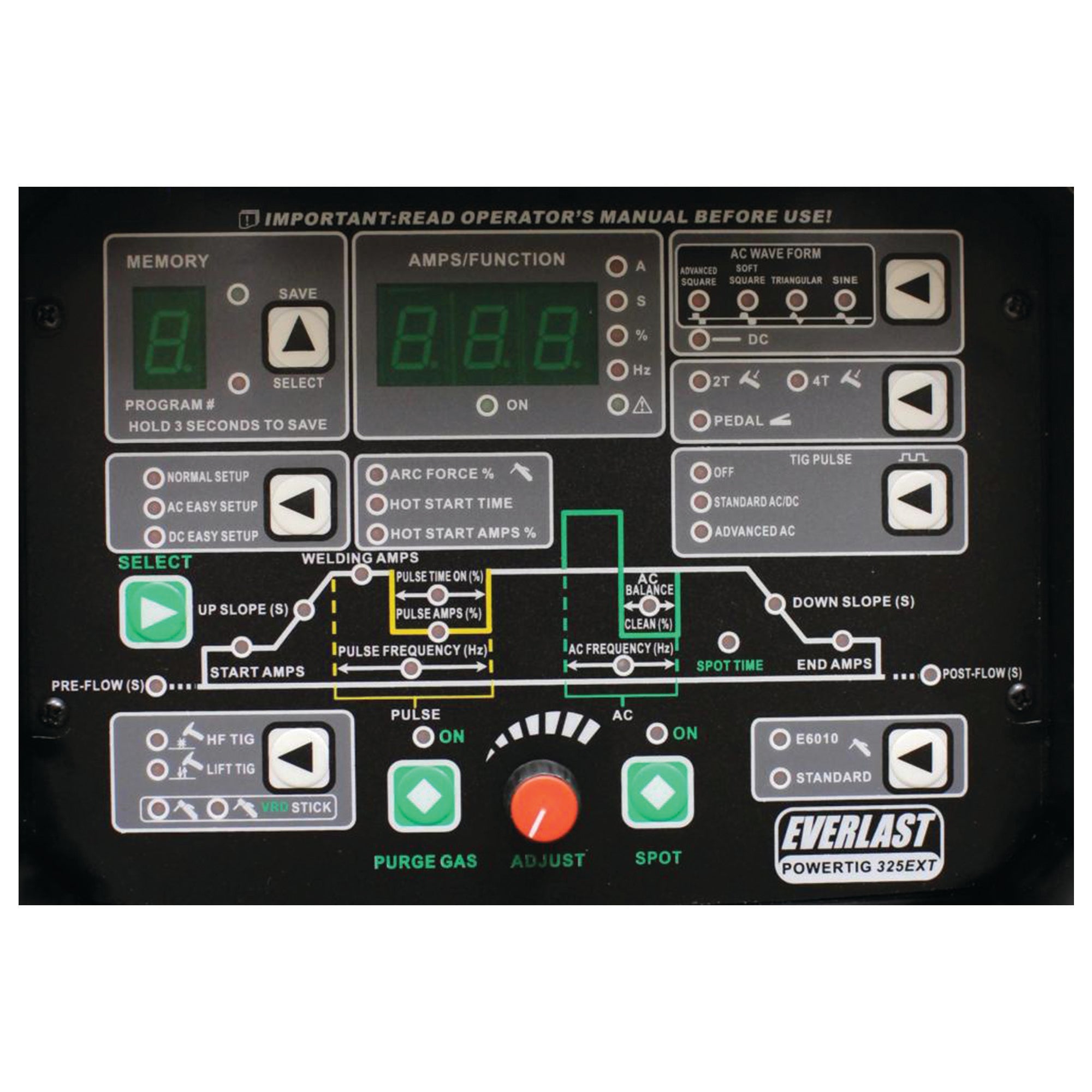

  • No hidden menus to access or complicated set up routines
  • Simplified menu design allows settings to be quickly selected and adjusted
  • Easy Start Up feature in AC or DC modes to make setup quick and easy for the beginner, or the advanced user
  • Pulse up to 500Hz in DC, 250 Hz AC
  • 10Hz Advanced AC Pulse mode improves penetration on thicker metals, and can reduce warping and burn through on thinner metals
  • Arc force control, Hot start time, Hot start intensity settings for Stick welding to improve performance
  • VRD function to help reduce chance of shock or electrocution in areas where a VRD is required or needed for stick welding
  •  480V 3 phase input capability

SPECIFICATIONS

  • IGBT Type: Module IGBT
  • Inverter Type: Digital/Micro-controlled
  • Output Type: AC/DC TIG, DC Stick
  • Voltage/phase: 480 V 3 PHASE (AVAILABLE AS OPTION)
  • Max Rated TIG Amps: 325A
  • Max Rated Stick Amps: 250A
  • TIG Amps @ Rated Duty Cycle: 325A/22.9V @ 35% Duty Cycle/ 40º C - 245A/19.8V @ 60% Duty Cycle/ 40º C - 190A/17.6V @ 100% Duty Cycle/ 40º C
  • Stick Amps @ Rated Duty Cycle: 250A/30V @ 35% Duty Cycle/ 40º C - 200A/28V @ 60% Duty Cycle/ 40 º C - 160A/ 26.4V @ 100% Duty Cycle/ 40 º C
  • Max Inrush ( I1MAX ) Amps: 14A @ 480V 3 phase
  • Maximum Rated (I1EFF ) Input Amps: 14A @ 460V 3ph
  • OCV: 70V (<24V with VRD)
  • TIG Output Range DC: 5A-325A
  • TIG Output Range AC: 10-325A
  • Stick Ouput Range DC: 20-250A
  • Stick Hot Start Amps: 0-100%
  • Stick Function: Adjustable Arc Force Control
  • Stick Hot Start Type: Adjustable Hot Start
  • Stick Hot Start Time: 0-2 Seconds
  • 6010/Cellulose Capable: Limited to 6011
  • Minimum Amp DC TIG Start: 5A
  • Minimum Amp AC TIG Start: 10A
  • TIG Start Type: HF and Lift Start
  • Memory: Yes
  • Start Amp Range: DC: 5A-325A - AC: 10A-325A
  • End Amp Range: DC: 5A-325A - AC: 10A-325A
  • Upslope Time: 0-25 Seconds
  • Down Slope Time: 0-25 Seconds
  • Preflow time: 0-25 Seconds
  • Post Flow Time: 0-25 Seconds
  • TIG Pulse: Yes
  • Standard DC Pulse Frequency: .1-500 Hz
  • Standard AC Pulse Frequency: .1-250 Hz
  • AC Advanced Pulse Frequency: .1-10 Hz
  • Pulse Time On (Duty Cycle): 5-95%
  • Pulse Amp Range: 5-100%
  • AC Frequency (Hz): 20-250Hz
  • AC Balance Range: 5-90%
  • AC Wave Forms: Advanced Square - Soft Square - Triangular - Sine
  • Remote Control: 2T/4T with Torch Amptrol settings
  • Foot Pedal: NOVA Foot Pedal

Minimum/Maximum:

TIG:

  • Weld steel to a maximum of 1/2" single pass
  • Weld steel to a maximum of 1+" multi-pass
  • Weld aluminum to a maximum of 1/2" single pass
  • Weld aluminum to a maximum of 1+" multi-pass
  • Weld to a minimum of .005" Steel
  • Weld to a minimum of .010" Aluminum

Tig minimum and maximum capability is generally determined by industry standard practices and governed by practical limits for single and multi-pass welds, aimed at achieving highest quality welds.   The Maximum Aluminum thickness expressed here is representative of an increase in normal capability due to the use of the Advanced TIG pulse which uses a high ratio of DC- current to increase penetration.

Stick:

  • Weld with a minimum of 1/16" diameter electrode
  • Weld with a maximum of 3/16" diameter electrode

This unit is not recommended for use with E6010.   The maximum electrode capability is ultimately affected by the rod type, composition and electrode manufacturer recommendations.

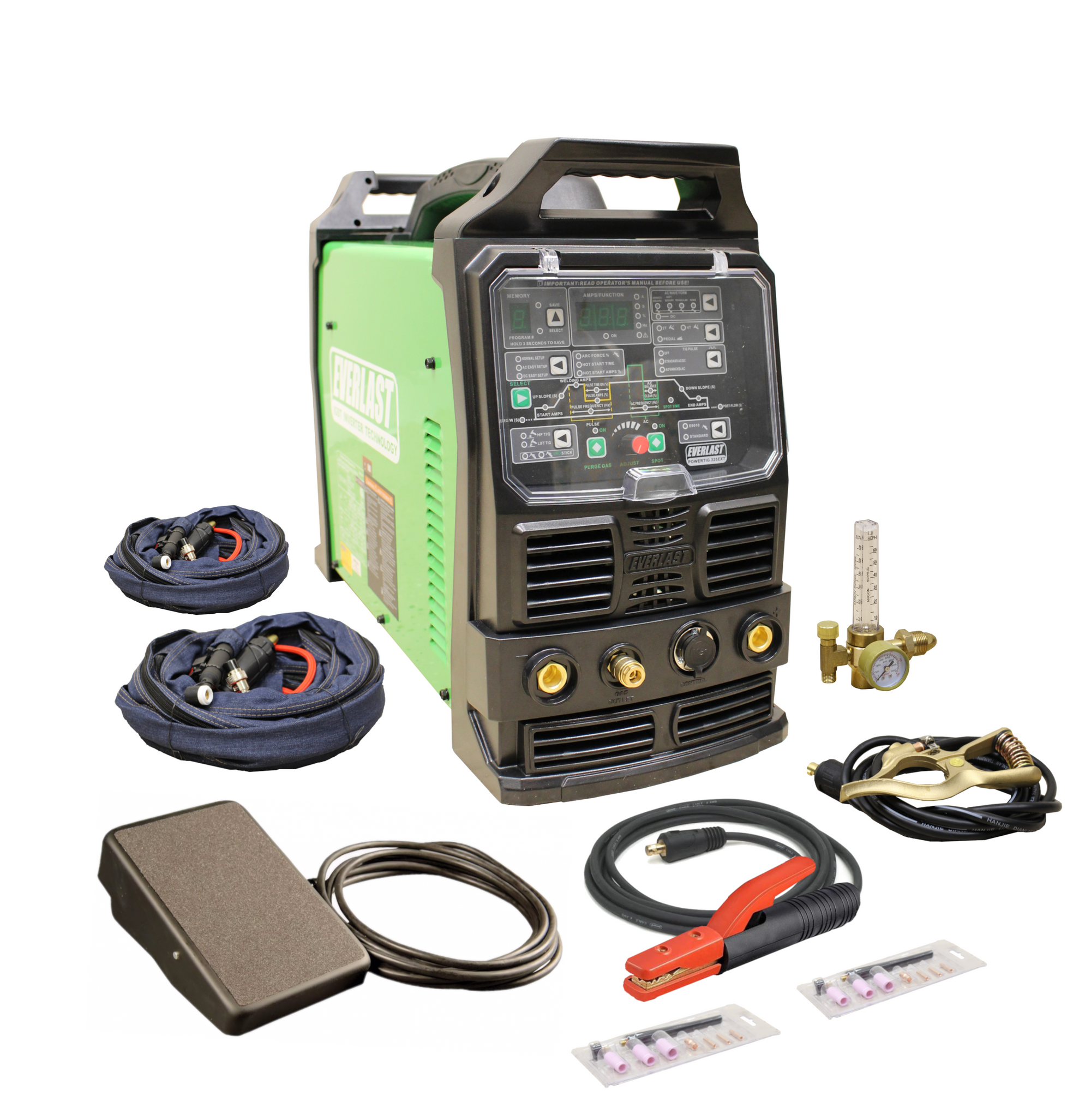

WHAT'S INCLUDED

  • Three Phase 415v Digital Control Ac/Dc Tig Machine
  • Wp-18f-7.5m Torch
  • Wp-9f-7.5m Torch
  • W/I Australian Regulator
  • 400a Tiger head Electrode Holder with 3m Electrode Cable
  • American Style Brass Earth Clamp
  • 3m Earth Cable
  • FREE UPGRADED Nova Foot Control Pedal

OPTIONS



  • Power Cool 300 Water Cooler
  • ProCart 330
  • Foot Pedal
  • Amp Control Slider
  • Welder Cover
  • NOVA Welding and Fabrication Table
  • NOVA Clamp and Tool Kit
  • Air-cooled 9/17/26 series TIG torches
  • Water-cooled 18/20 series TIG torches
  • Amp Control TIG torches
  • TIG Consumables Kits

NOTES



This unit is configured for only 480V 3 phase operation.  Everlast also offers a PowerTIG 325EXT configured for 240V 1 and 3 phase operation. The 480V version is not configured with a built in outlet for the water cooler.

E6010 use is not recommended with this welder.

Do not use with generators that are not certified as "clean power" by the generator manufacturer (<5% THD). For single phase use with a generator, use a generator that is capable of at least 12,500 watts.
